Tipo de máquina: |
granulador |
Capacidad: |
requerido por los clientes |
Dispositivo opcional: |
Dispositivo microalimentador |
proveedor: |
fábrica china |
Sistema de control: |
SOCIEDAD ANÓNIMA |
Tipo de alimentación: |
tipo de alimentación horizontal |
Características: |
sin agua ni disolventes |
Garantía: |
un año |
Material: |
SS304, 316L |
Punto de venta del núcleo: |
PLC de marca famosa |
Industria aplicable: |
industria farmacéutica, química, alimentaria |
Ventajas: |
estrictos requisitos de proceso |
Paquete: |
caso de madera o plataforma de madera |

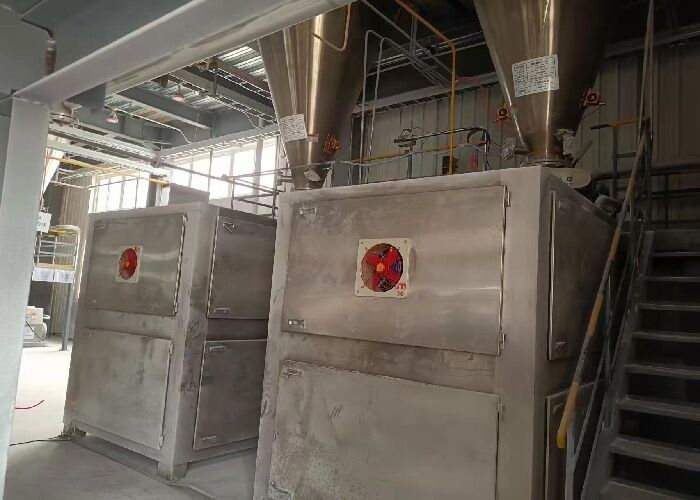

Collagen Roller Compactor Protein Dry Granulator In Food Industry
Collagen Roller Compactor Protein Dry Granulator In Food Industry
Roller Compactor is also called Dry Granulator.
The dry granulation machine directly converts powder materials into particles through physical extrusion, crushing, and granulation processes. During the granulation process, no liquid adhesive is added, and the output particles do not need to be dried. They can be directly used for the next step of packaging, tablet pressing, or capsule filling.
The dry granulator also can work together with pharma bin, Pneumatic Conveyor and Vibrating Sieve, and forms a sealed automatic dry granulation process line as the following flow chart:
| Model |
LG100 |
LG100E |
LG160 |
LG200 |
LG240 |
LG360 |
|
Capacity
(kg/h)
|
1.5-15 |
12-40 |
50-150 |
100-240 |
160-320 |
360-720 |
|
Rated power
(kw)
|
3.47 |
3.53 |
7.24 |
11.37 |
15.94 |
32.55 |
| Roller size (D*W) |
100*25 |
100*40 |
160*50 |
200*75 |
240*100 |
360*150 |
For large production scale application, we provide double-supporting roller model
| Model |
LGS200 |
LGS240 |
LGS360 |
LGS500 |
|
Capacity
(kg/h)
|
200-400 |
300-640 |
1200-2000 |
1500-3000 |
|
Rated power
(kw)
|
|
|
|
|
| Roller size (D*W) |
|
|
|
|
Roller Compactor For Dry Granulation has the following features:
• In compliance with cGMP guidelines
• Contact parts are made of S.S 304 or S.S. 316 except rollers
• All covers are designed to obtain dust-free operation
• Feed screw is steplessly driven through variable frequency drive.
• Hard chome plated & mirror finished compacting rolls made of tools steel
• Pre-compaction chamber guides the product to rolls without any slippage or leakage.
• Electrical interlocking between main roll drive and feed screw drive
• Water Jacketing arrangement
• Hydraulic Power Pack system
• Inverter for rolls and milling device
• PLC system as per 21 CFR part 11 (optional)
Application of Roller compactor:
Dry Granulator is widely used in pharmaceutical industry, nutriceutical industry, food industry and chemical industry.
Pharmaceutical industry: Chinese medicine, western drugs, amoxicillin, cefalexin, etc.
Nutriceutical industry: Probiotics, lyophilized royal jelly powder, etc.
Food industry: Fruit powder, collagen powder, tea powder, etc.
Chemical industry: Magnesium oxide, antioxidants, pyrazole, etc.
